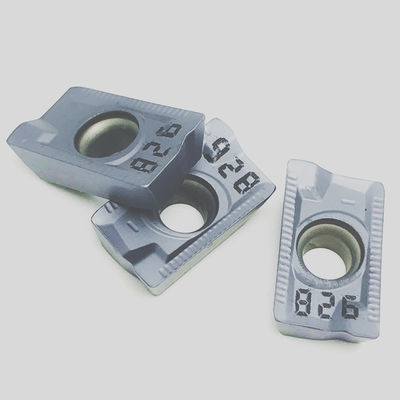

APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium

I'm Online Chat Now

APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium

APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium
APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium

Large Image :  APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium

Product Details:
Place of Origin: China
Brand Name: cross
Model Number: APKT1604PDER
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: 0.5$-1.8$ psc
Packaging Details: 10pc/pp bag, carton for outsdie packing Box color: red, white, blue
Delivery Time: 7~45 days
Payment Terms: By 30% Telegraphic in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram

APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium

Description
Material: Aluminum Milling Color: Gray
Workpiece: Aluminum, Acrylic And Non-ferrous Metal Packing: In One Carton Or As Your Wish
Type: Milling Package: 10pcs/plastic Box
Grade: MN10 Coating: Uncoated
High Light:

APKT1604PDER carbide inserts for aluminium

,

APKT1604PDER cnc tool inserts

,

MN10 carbide inserts for aluminium

APKT1604PDER ​ Cnc Carbide Inserts For Aluminum milling inserts series:



Aluminum milling inserts series:

1.Processing objects: finishing and semi-finishing of aluminum, acrylic and non-ferrous metal

2.Features: light cutting, strong edge resistancehigh wear resistance

3.Common specification:APKT/SEHT/RCGT

4.Common used grade:H10F



  continuous processling and irregular processing lntermittent processing
  Linear velocity vc Feed per tooth f Linear velocity vc Feed per tooth f
Stainless steel 80-120-180 0.06-0.30 06-90-110 0.08-0.20
Mild steel 120-180-250 0.06-0.30 100-150-200 0.08-0.30
HRC<52° 80-120-150 0.06-0.30 60-100-120 0.08-0.20
HRC52°-60°Steel 40-120 0.06-0.12
Ap=0.4-3.0mmcutting depth







Recommended Cutting Parameters:

  • The following cutting parameters are the recommended range values. Appropriate adjustments and selections should be considered after considering the following factors:
    • Specific physical properties of the material being processed
    • The actual condition of the part blank
    • Power and rigidity of the machine tool
    • Clamping rigidity of tools and workpieces
    • Balance between tool life and machining efficiency
        MN10
        Feed (mm/rev)
        0.05 - 0.35



ISO



Material



Heat Treatment

Hardness (HB)



Speed (m/min)

N Aluminum Alloy Un-Heat Treatment 60 1750 - 800
N Aluminum Alloy Heat Treatment 100 510 - 250
N Cast Aluminum Alloy Un-Heat Treatment 75 460 - 175
N Cast Aluminum Alloy Heat Treatment 90 300 - 110
N Copper Alloy Lead Alloy 110 610 - 205
N Copper Alloy Copper 90 310 -195
N Copper Alloy Copper, Lead-free Copper, Electrolytic Copper 100 225 - 115



  • Application:

  • ISO N material, the first choice for non-ferrous metal processing such as aluminum alloy.
  • Technical Information:

  • ISO N, including non-ferrous materials and soft metals with a hardness lower than HB130, including high-strength bronze (>HB225).
  • Mainly refers to aluminum alloys containing less than 12-13% Si.
  • Aluminum cutting performance:
  • Long chip material.
  • If it is an alloy, the control of the chips is relatively easy.
  • Pure aluminum is tacky, requiring sharp cutting edges and high cutting speeds.
  • The cutting force is low, so the power required for processing is also low.
  • If the Si content of the material is less than 7-8%, it can be processed with fine-grained uncoated carbide inserts.
  • If you are processing aluminum with a high Si content, use a PCD tool.

APKT1604PDER MN10 CNC Tool Carbide Inserts For Aluminium 0

tips:

1. Since the price of cutting tools often fluctuates, the price on the website is not necessarily the current price. Please contact us to confirm the exact stock and price before purchasing
2. Due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support various channels of payment, 30% prepayment

4.The minimum order quantity is 50 pieces, and the packaging can be customized (minimum order of 500 pieces)
