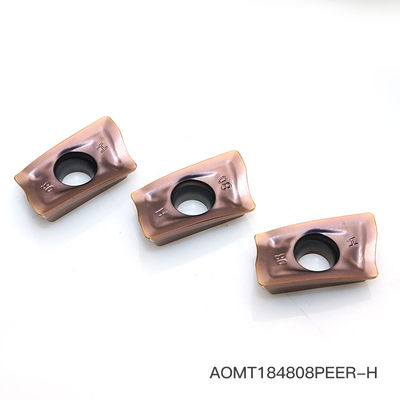

AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390

AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390
AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390 AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390 AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390 AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390

Large Image :  AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: AOMT184808PEER-H
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: 0.5$-1.8$ psc
Packaging Details: 10pc/pp bag, carton for outsdie packing Box color: red, white, blue
Delivery Time: 7~45 days
Payment Terms: By 30% Telegraphic in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram

AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390

Description
Features: Light Cutting, Anti-collapseperformance, High Efficiency Of Roughing Coating: Pvd/cvd
Workpiece: Mold Steel Tool Steel And Stainless Steel Packing: In One Carton Or As Your Wish
Type: Square Series Milling Cutter Blade Package: 10pcs/plastic Box
Grade: HPO2P1、HPO3P5、HPO4P4 Common Specifications: APKT/APMT/R390
High Light:

AOMT184808PEER-H Square Milling Inserts

,

Square Milling Inserts R390

,

AOMT184808PEER-H carbide cutter insert replacements

AOMT184808PEER-H​​ Cnc Carbide Inserts For Square series milling cutter blade



Square series milling cutter blade:

  • Processing object: Roughing of mold steel tool steel and stainless steel
  • Features: light cutting, anti-collapseperformance, high efficiency of roughing
  • Common specifications:APKT/APMT/R390
  • Commonly used grades:HPO2P1,HPO3P5,HPO4P4

Technical Information:

  • Milling is the most flexible machining method available, and it can process almost any shape.
  • Milling completes metal cutting by rotating a multi-cutting tool to perform a programmable feed motion in almost any direction along the workpiece. This cutting action makes milling an effective general-purpose machining method.
  • The choice of machining methods on multi-spindle machines is no longer easy to choose: in addition to all conventional applications, milling is undoubtedly competitive for machining holes, cavities and surfaces commonly used for turning or thread turning. .
  • The disadvantage of milling flexibility is that there are many variables in the process, the factors to be considered increase, the situation is more complicated, and the optimization brings more challenges.
  • Modern milling is a very common method of machining. With the continuous development of machine tools, milling has evolved into a versatile method for processing a large number of different structural products.
  • The development of modern tools also offers more possibilities, and through the indexable inserts and solid carbide technology, productivity, reliability and quality consistency can be improved.
  • With a certain way of cutting, each cutting edge of the tool can remove a certain amount of metal, so that chip formation and chip removal are no longer a top priority.
  • The most common milling applications are available for generating planes. However, with the increasing number of five-axis machining centers and multi-tasking machines, other processing methods and surface processing methods have also been greatly developed.
  • From the point of view of the part or from the point of view of the tool path, the main types of milling operations include:
  1. Face milling
  2. Shoulder milling
  3. Cavity milling
  4. Profile milling
  5. Groove milling
  6. Thread milling
  7. Slope milling
  8. High feed milling
  9. Plunge milling
  10. Parting
  11. Cycloidal milling
  12. Spiral interpolation milling
  13. Turning
  14. Circular interpolation milling





ISO



Material

Hardness

(HB)

Diameter

(mm)

Feed

(mm/r)

Speed

(m/min)





P





Carbon Steel





80-200

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.09

0.06 - 0.10

0.07 - 0.11

0.08 - 0.12





170 - 240





P





Low Alloy Steel





150-260

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 -0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20





140 - 220





P





High Alloy Steel





150-320

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22





120 - 180





P





Cast Steel





180-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.08

0.05 - 008

0.06 - 0.10

0.07 - 0.11

0.07 - 0.12





120 - 170





M





Ferritic Stainless Steel

Martensitic Stainless Steel





150-270

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22





110 - 230





M





Austenitic Stainless Steel





150-275

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.11

0.06 - 0.13

0.08 - 0.14

0.10 - 0.16





110 - 220





K





Malleable Cast Iron





150-230

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24





120 - 220





K





Gray Cast Iron





150-220

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24





170 - 240





K





Ductile Iron





160-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20





130 - 200



FAQ:

Q: What information should I let you know if i want to get a quotation?

A: The specifications of the products.

The quantity.

If it is possible, please also provide the application of products, we will recommend relevance products with details for reference.



Q: Do you inspect the finished products?

A: Yes. Each step of production and finished products will be carried out inspection by QC department before shipping.



Q: Can you guarantee the prompt delivery?

A: Yes, the production process will be informed to you promptly.



Q: What is the shipping cost?

A: The shipping cost is determained by the destination port, weight, packing size, total CBM of the

products, we will quote you the resonable shipping cost after you decide the order.



tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )



AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390 0AOMT184808PEER-H Carbide Cutter Square Milling Inserts Replacements R390 1
