R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390

R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390
R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390 R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390

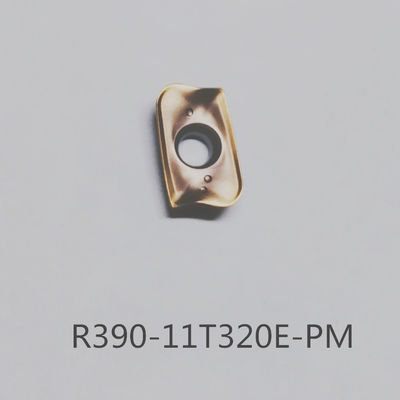

Large Image :  R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: R390-11T320E-PM
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: 0.5$-1.8$ psc
Packaging Details: 10pc/pp bag, carton for outsdie packing Box color: red, white, blue
Delivery Time: 7~45 days
Payment Terms: By 30% Telegraphic in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram

R390-11T320E-PM CNC Carbide Square Milling Inserts APKT APMT R390

Description
Features: Light Cutting, Anti-collapseperformance, High Efficiency Of Roughing Coating: Pvd/cvd
Workpiece: Mold Steel Tool Steel And Stainless Steel Packing: In One Carton Or As Your Wish
Type: Square Series Milling Cutter Blade Package: 10pcs/plastic Box
Grade: HPO2P1、HPO3P5、HPO4P4 Common Specifications: APKT/APMT/R390
High Light:

R390-11T320E-PM Square Milling Inserts

,

CNC Carbide Inserts APKT APMT R390

,

R390-11T320E-PM CNC Carbide Inserts

R390-11T320E-PM​​​​​ Cnc Carbide Inserts For Square series milling cutter blade



Milling Application Tips:

  • Use the correct tool pitch for cutting to minimize the number of inserts involved in the cut to avoid vibration, while on the other hand, for narrow workpieces or when milling exceeds space, make sure the inserts are adequate.
  • Check power capability and machine rigidity and ensure that the machine can make the most of the required tool diameter.
  • Cutting on the spindle with the shortest possible tool overhang.
  • Be sure to use the correct feed per blade to achieve the correct cutting action with the recommended maximum chip thickness.
  • In any case, the use of indexable inserts with positive rake grooves provides smooth cutting and lowest power consumption.
  • Climb milling is recommended whenever possible.
  • Select the correct tool diameter that corresponds to the width of the workpiece.
  • Choose the most appropriate lead angle.
  • Position and clamp the cutter correctly.
  • Follow blade maintenance recommendations and monitor tool wear.
  • If you need to consider the use of coolant, milling without coolant can generally be done very well.



Recommended Cutting Parameters:

  • The following cutting parameters are recommended range values ​​and should be adjusted as appropriate after considering the following factors:
    • The specific physical properties of the material being processed.
    • The actual condition of the part blank.
    • The power and rigidity of the machine tool.
    • Clamping rigidity of the tool and workpiece.
    • Balance between tool life and machining efficiency.



Feature Advantage:

  • Ensure that the edge is strong and try to keep sharp
    The insert is not easily broken and the cutting is lighter.
    Suitable for rough milling of all kinds of steel and stainless steel.







ISO



Material

Hardness

(HB)

Diameter

(mm)

Feed

(mm/r)

Speed

(m/min)





P





Carbon Steel





80-200

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.09

0.06 - 0.10

0.07 - 0.11

0.08 - 0.12





170 - 240





P





Low Alloy Steel





150-260

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 -0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20





140 - 220





P





High Alloy Steel





150-320

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22





120 - 180





P





Cast Steel





180-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.08

0.05 - 008

0.06 - 0.10

0.07 - 0.11

0.07 - 0.12





120 - 170





M





Ferritic Stainless Steel

Martensitic Stainless Steel





150-270

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.16

0.08 - 0.18

0.10 - 0.22





110 - 230





M





Austenitic Stainless Steel





150-275

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.11

0.06 - 0.13

0.08 - 0.14

0.10 - 0.16





110 - 220





K





Malleable Cast Iron





150-230

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24





120 - 220





K





Gray Cast Iron





150-220

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.10

0.05 - 0.14

0.08 - 0.16

0.10 - 0.20

0.12 - 0.24





170 - 240





K





Ductile Iron





160-250

13.0 - 21.0

22.0 - 33.0

34.0 -41.0

42.0 - 50.0

51.0-58.0

0.05 - 0.09

0.05 - 0.12

0.06 - 0.14

0.08 - 0.16

0.10 - 0.20





130 - 200



FAQ:

Q: What information should I let you know if i want to get a quotation?

A: The specifications of the products.

The quantity.

If it is possible, please also provide the application of products, we will recommend relevance products with details for reference.



Q: Do you inspect the finished products?

A: Yes. Each step of production and finished products will be carried out inspection by QC department before shipping.



Q: Can you guarantee the prompt delivery?

A: Yes, the production process will be informed to you promptly.



Q: What is the shipping cost?

A: The shipping cost is determained by the destination port, weight, packing size, total CBM of the

products, we will quote you the resonable shipping cost after you decide the order.



tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )
