Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off

Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off
Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off

Large Image :  Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: 9GR180
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: 0.5$-1.8$ psc
Packaging Details: 10pc/pp bag, carton for outsdie packing Box color: red, white, blue
Delivery Time: 7~45 days
Payment Terms: By 30% Telegraphic in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off

Description
Workpiece: General Machining Of Steeland Stainless Steel Type: Small Hole Inner Diameter Grooving Blade
Sample: Available Sample Processing Type: Grooving
Coating: Pvd Or Cvd Usage: Parting And Grooving
Hardness: 89-93HRA Product Name: Tungsten Carbide Parting And Grooving Inserts
High Light:

Grooving Blade Parting And Grooving Inserts

,

Cutting Off CNC Carbide Inserts

,

Grooving Blade CNC Carbide Inserts

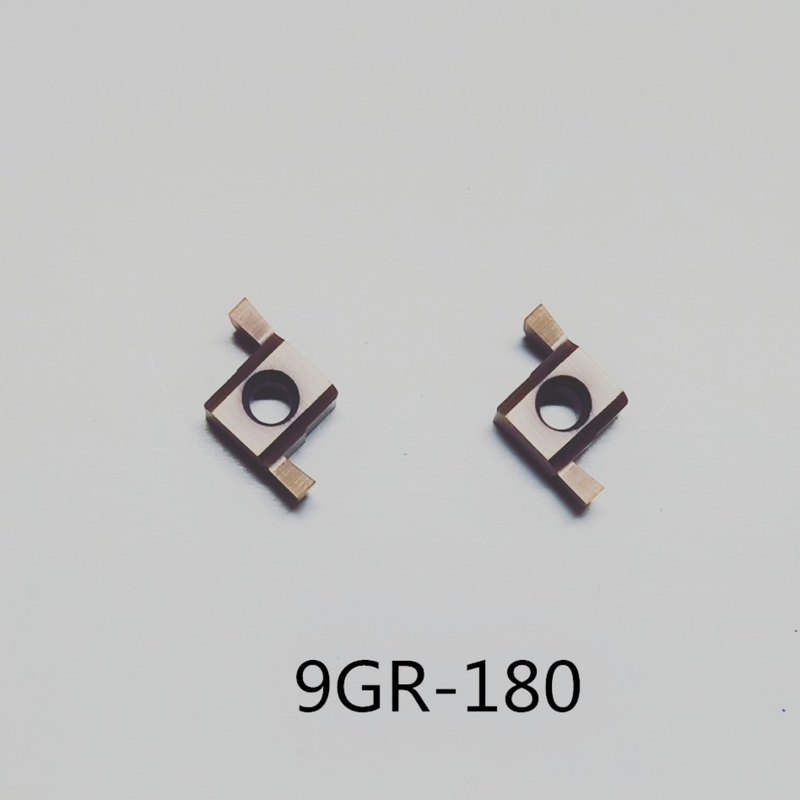

CNC Carbide Small hole inner diameter grooving blade 9GR180 For Cutting Off



Feature Advantage:

  • It is the first choice for efficient options of general slotting.
    Extremely versatile substrate and coating, suitable for all types of material slotting. It is especially suitable for grooving steel parts.
    The perfect edge ensures the quality stability of the blade.
    The service life of plug-ins using the same plug-in is longer than that of Korean brands.
    The cutting is light, the chip removal is smooth, and the ideal surface quality is achieved.
  •
model L1(mm) L2(mm)
6GR 6.44 4.76
7GR 7.36 5.56
8GR 10.16 6.35
9GR 12.95 6.35



Technical information :

Slotting and separation are unique turning applications for many machining applications that require special tools. These tools can be regarded as the extension of ordinary turning to some extent.
Slotting and separating operations should consider three different aspects to determine the best method and mold solution:
Features of parting and grooving workpiece:
Analysis of groove size and quality requirements to be processed: processing type, groove depth, groove width, outer radius and quality requirements.
Workpiece material, shape and quantity.
Whether the material has good chip breaking performance
Production batch: single or batch slotting
Whether the workpiece can be clamped safely
Chip removal
Machine parameters.
Stability, power and torque, especially for large components
Cutting fluid and coolant
Whether the long chip material needs high-pressure coolant to break chips
Speed limit
Use all possible support
Timely replacement of worn blades will make the cost of new blades more economical than that of excessively worn blades.
Replace worn or damaged rods.
Don't try to repair the turret.



Grooving Blade Parting And Grooving Inserts CNC Carbide Inserts For Cutting Off 0



Because the production of standard tools is aimed at the cutting of common metal parts or non-metallic parts with a wide range of surfaces, when the hardness of the workpiece is increased due to overheating treatment, or the workpiece is stainless steel, it is very easy to stick to the tool, and there are also some cases where the surface geometry of the workpiece is very complex, or the machined surface has high roughness requirements, the standard tools can not meet the needs of processing. Therefore, in the process of machining, it is necessary to carry out targeted design for the material of the tool, the geometric shape of the edge, the geometric angle, etc., which can be divided into two categories: no need for special customization and need for special customization
