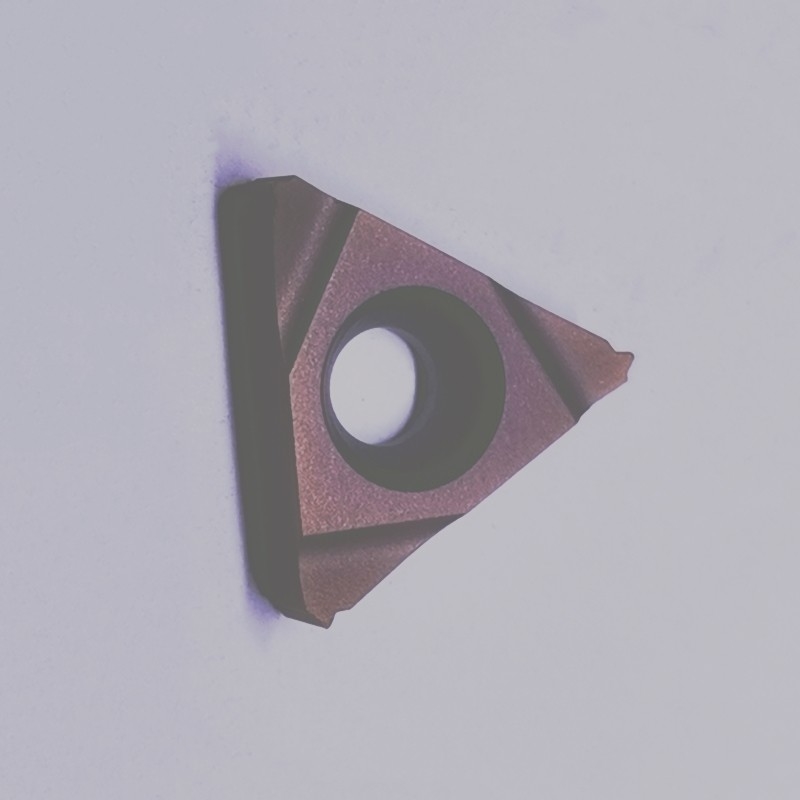

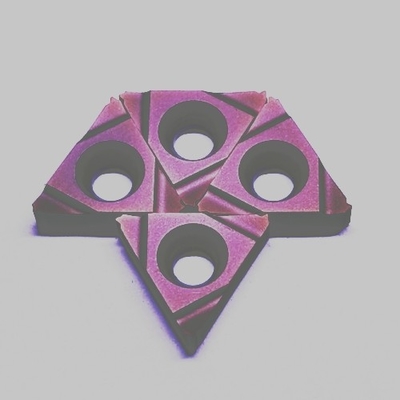

16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating

I'm Online Chat Now

16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating

16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating
16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating 16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating

Large Image :  16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: 16IR1.5
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 0.68$-0.9$
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

16IR1.5 Triangle Carbide Thread Cutting Inserts PVD CVD Coating

Description
Coating: PVD/CVD Usage: Thread Turning Tool
Material: Tungsten Carbide Color: Gray/golden/black
Application: Thread Turning Tool Workpiece: Steel/stainless Steel/cast Iron/aluminum/copper
Advantages: Factory Direct Package: 10pcs/plastic Box
Sample: Available
High Light:

16IR1.5 thread cutting inserts

,

thread cutting inserts PVD CVD

,

16IR1.5 triangle carbide inserts

16IR1.5 Carbide Cnc Cutting Tools Threading Insert Turning Insert





Technical Information:

  • US UN thread for industrial machinery.
  • Turning threads are common operations on CNC machines. The use of indexable tools to cut threads enables safe and high productivity of the process.
  • Thread turning should initially consider three aspects to determine the best method and tool selection for threading:
    • Main parameters of the thread:
      • External or internal thread
      • Thread type
      • Pitch
      • Right or left hand thread
      • Tolerance
    • Workpiece material properties, shape and quantity
      • Whether the workpiece is safely clamped
      • Whether there is any problem with chip removal
      • Workpiece batch
    • Machine parameter
      • Stability, power and torque requirements, especially for larger diameter threading
      • Workpiece clamping condition
      • Threading cycle should be easy to program
      • Cutting fluid and coolant
    • The feed of the machine is the most important factor in turning the thread: it must be equal to the pitch, which is the distance between a point on the thread and the corresponding point of the adjacent thread. The fit between the pitch and the feed per revolution is accomplished by controlling subroutines in the CNC machine.
