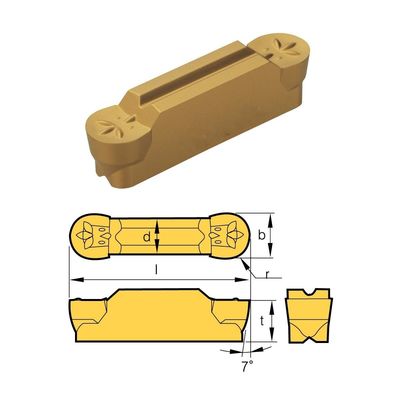

MRMN600-M CNC Cutting Tools Carbide Inserts MGMN N151.2 N123H2

Cutting off and grooving inserts series:

1.Processing object: general machining of steeland stainless steel

2.Features: light cutting, smooth chip removalhigh surface finish

3.Common specification:MGMN/N151.2/N123H2

4.Common used grade:HPO2P1,HPO4P4,HC15P1

Technical Information:

• Grooving and cutting are unique turning applications that are used in many machining applications and require specialized tools. These tools can be seen to some extent as an extension of ordinary turning.
• Parting & Grooving operations should consider three different aspects to determine the best method and tooling solution:
  • Cutting and grooving workpiece characteristics. Analyze the size and quality requirements for the groove to be machined: type of processing, depth of the groove, width of the groove, radius of the outer circle, quality requirements, etc.
  • Workpiece material, shape and quantity.
    • Whether the material has good chip breaking performance
    • Production batch: single or batch grooving
    • Whether the workpiece can be safely clamped
    • Chip removal
  • Machine parameters.
    • Stability, power and torque, especially for larger parts
    • Cutting fluid and coolant
    • Whether high pressure coolant is needed for long chip material to break chip
    • Speed ​​limit
    • Use all possible supports
• The replacement of worn inserts in a timely manner will cost the new inserts more economically than if they were excessively worn.
• Replace worn or damaged shank.
• Do not attempt to repair the tool holder.

•
• Grade & Type:
