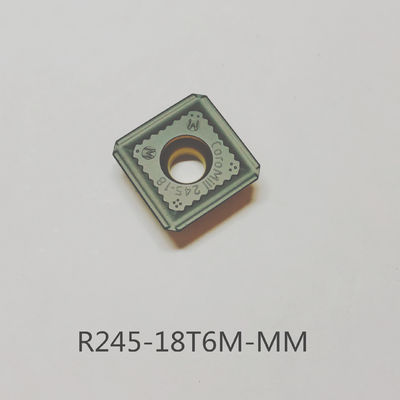

R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT

I'm Online Chat Now

R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT

R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT
R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT

Large Image :  R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: R245-18T6M-MM
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: 0.5$-1.8$ psc
Packaging Details: 10pc/pp bag, carton for outsdie packing Box color: red, white, blue
Delivery Time: 7~45 days
Payment Terms: By 30% Telegraphic in advance, L/C, D/A, D/P, T/T, Western Union, MoneyGram

R245-18T6M-MM CNC Machine Tools Face Milling Inserts SEKT SEMT

Description
Coating: Pvd/cvd Workpiece: Mold Steel Tool Steel And Stainless Steel
Packing: In One Carton Or As Your Wish Type: Face Milling Inserts Series
Package: 10pcs/plastic Box Grade: HPO4P4、HPO2P5
High Light:

R245-18T6M-MM Face milling inserts

,

cnc machine tools inserts SEKT

,

R245-18T6M-MM cnc machine tools inserts

R245-18T6M-MM​ Cnc Carbide Inserts For Face milling inserts series



Face milling inserts series:

  • Processing object: Roughing of mold steel tool steel and stainless steel
  • Features: light cutting, anti-collapse performance, high efficiency of roughing
  • Common specifications:SEKT/SEMT/R210/R245/R490
  • Commonly used grades:HPO4P4,HPO2P5



Company Profile:

We are a trading company with two factories in Sichuan. China.

Manufacturer with eight years experience in the production of carbide cutting tools,

Including carbide turning, milling, threading, grooving inserts, carbide end mills, drills, etc.

Complete specification of carbide milling inserts.

Currently, we have more than two-thousand different products from major brands all over the world.

Sandvik, Iscar, Mitsubishi, Kyocera, Chloe, Sumitomo, etc.



Milling Application Tips:



  • Check power capability and machine rigidity and ensure that the machine can make the most of the required tool diameter.
  • Cutting on the spindle with the shortest possible tool overhang.
  • Use the correct tool pitch for cutting to minimize the number of inserts involved in the cut to avoid vibration, while on the other hand, for narrow workpieces or when milling exceeds space, make sure the inserts are adequate.
  • Follow blade maintenance recommendations and monitor tool wear.
  • If you need to consider the use of coolant, milling without coolant can generally be done very well.
  •
  • Recommended cutting parameters:

    The following cutting parameters are recommended range values and should be adjusted as appropriate after considering the following factors:
    Specific physical properties of the material being processed
    The actual situation of the part blank
    Power and rigidity of machine tools
    Clamping stiffness of tools and workpieces
    Balance between tool life and machining efficiency
    ​​

            ∅25 ∅30/32/35
    ISO Material Hardness (HB) Speed
    (m/min)
    Axial Cutting Depth
    (mm)
    Feed
    (mm/tooth)
    Axial Cutting Depth
    (mm)
    Feed
    (mm/t)
    P Carbon Steel 180 - 280 120 - 220 0.6 - 1.0 0.8 - 1.2 0.8 - 1.2 1.0 - 1.4
    P Alloy Steel 280 - 350 80 - 180 0.4 - 0.8 0.8 - 1.2 0.8 - 1.2 1.0 - 1.4
    P Pre-Hardened Steel HRC 35 80 - 160 0.4 - 0.8 0.6 - 1.0 0.6 - 1.0 0.8 - 1.2
    M Stainless Steel 270 80 - 190 0.6 - 1.0 0.6 - 1.0 0.6 - 1.0 0.8 - 1.2
    K Cast Iron Tensile Strength
    350 MPa
    100 - 200 0.6 - 1.0 1.0 - 1.4 1.0 - 1.4 1.2 - 1.6
    K Ductile Iron Tensile Strength
    800 MPa
    80 - 160 0.4 - 0.8 0.8 - 1.2 0.8 - 1.2 1.0 - 1.4



            ∅40 ∅50/63
    ISO Material Hardness (HB) Speed
    (m/min)
    Axial Cutting Depth
    (mm)
    Feed
    (mm/tooth)
    Axial Cutting Depth
    (mm)
    Feed
    (mm/t)
    P Carbon Steel 180 - 280 120 - 220 0.8 - 1.2 1.0 - 1.4 1.1 - 1.5 1.1 - 1.5
    P Alloy Steel 280 - 350 80 - 180 0.6 - 1.0 1.0 - 1.4 0.9 - 1.3 1.1 - 1.5
    P Pre-Hardened Steel HRC 35 80 - 160 0.6 - 1.0 0.8 - 1.2 0.9 - 1.3 0.9 - 1.3
    M Stainless Steel 270 80 - 190 0.8 - 1.2 0.8 - 1.2 1.1 - 1.5 0.9 - 1.3
    K Cast Iron Tensile Strength
    350 MPa
    100 - 200 0.8 - 1.2 1.2 - 1.6 1.1 - 1.5 1.3 - 1.7
    K Ductile Iron Tensile Strength
    800 MPa
    80 - 160 0.6 - 1.0 1.0 - 1.4 0.9 - 1.3 1.1 - 1.5

tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )
