16ER190W CNC Carbide Cutting Inserts

I'm Online Chat Now

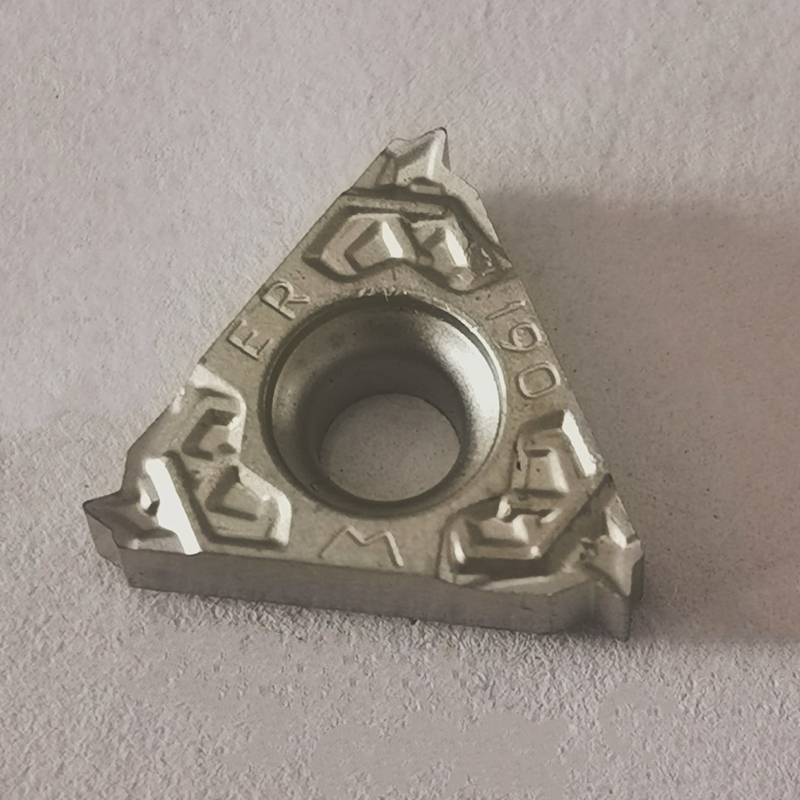

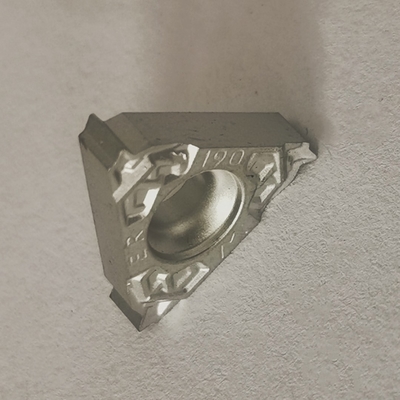

16ER190W CNC Carbide Cutting Inserts

16ER190W CNC Carbide Cutting Inserts
16ER190W CNC Carbide Cutting Inserts 16ER190W CNC Carbide Cutting Inserts

Large Image :  16ER190W CNC Carbide Cutting Inserts

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: 16ER190W
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 0.68$-0.9$
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

16ER190W CNC Carbide Cutting Inserts

Description
Coating: Pvd/cvd Usage: Thread Turning Tool
Material: Tungsten Carbide Color: Gray/golden/black
Application: Thread Turning Tool Workpiece: Steel/stainless Steel/cast Iron/aluminum/copper
Advantages: Factory Direct Package: 10pcs/plastic Box
Sample: Available
High Light:

16ER190W carbide cutting inserts

,

Tungsten Carbide carbide cutting inserts

,

16ER190W cnc turning inserts

16ER190W​ Carbide Cnc Cutting Tools Threading Insert Turning Insert



Technical Information:

  • NPT threads for steam, natural gas and water pipes.
    Turning thread is a common operation on CNC machine tools. Using indexable tools to cut threads can achieve process safety and high productivity.
    The feed rate of the machine tool is the most important factor when turning threads: it must be equal to the pitch, that is, the distance between a point on the thread and the corresponding point of the adjacent thread. The coordination between the pitch and the feed per revolution is completed by controlling the subprogram in the CNC machine tool.
    For thread turning, three aspects shall be considered first to determine the best thread processing method and tool selection:
    Main parameters of thread:
    External or internal threads
    Thread Type
    pitch
    Right hand or left-hand thread
    tolerant
    Workpiece material properties, shape and quantity
    Whether the workpiece is clamped safely
    Is there any problem with chip removal
    Workpiece batch
    Machine parameters
    High requirements for stability, power and torque, especially for large diameters



Feature Advantage:

  • NPT standard thread series are available in various specifications and models.
  • Observed under a microscope of 40 times, the perfect edge grinding and passivation accuracy.
  • The workpiece angle error is controlled at ±0.5 degrees.
  • High-quality cemented carbide substrate, high toughness, high wear resistance and versatility.
  • High-precision tooth type for high-quality, high-precision thread machining of steel, stainless steel, and difficult-to-cut materials.
  • Life is completely comparable to the first-line brands in Europe and America.



Type:





Serial



Size



Pitch



MP2215

ISO:

ISO 965-1980

DIN 13

16 Right/Left External 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

16 Right/Left Internal 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left External 3.5-6.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left Internal 3.5-6.0 mm

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left External 8-19 t/inch

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left Internal 8-19 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left External 8-24 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left Internal 8-24 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left External 11-28 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left Internal 11-28 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left External 8-27 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left Internal 8-27 t/inch

tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )
