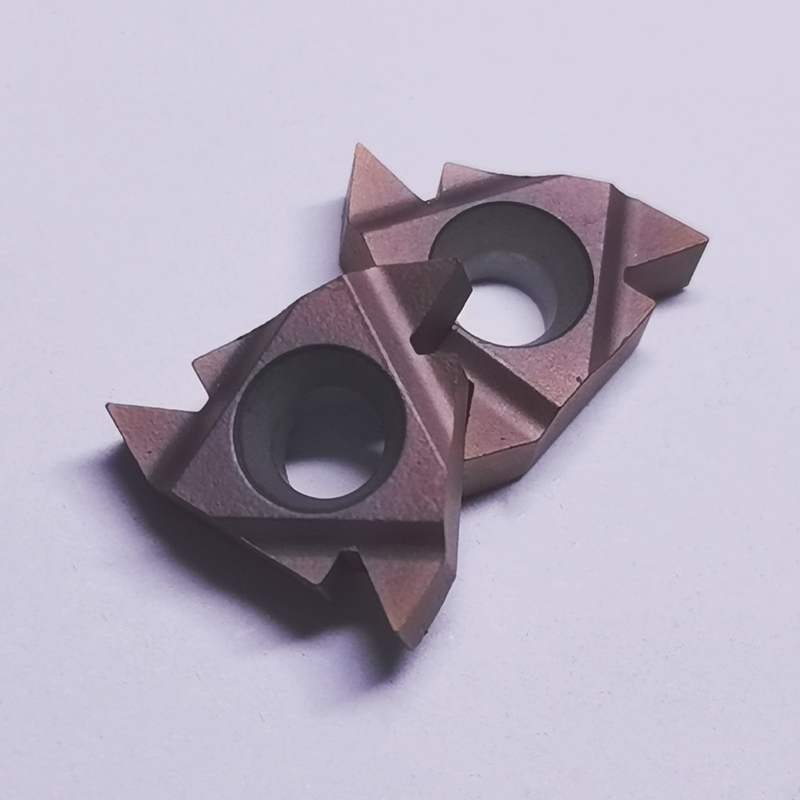

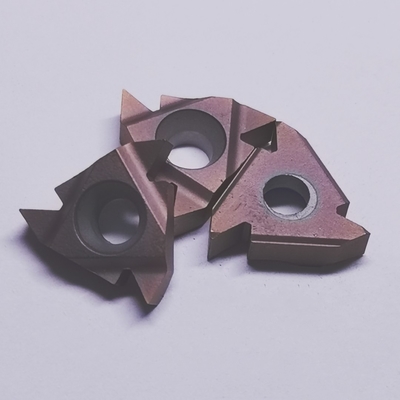

16ER AG55 CNC CNMG Carbide Threading Inserts

16ER AG55 CNC CNMG Carbide Threading Inserts
16ER AG55 CNC CNMG Carbide Threading Inserts 16ER AG55 CNC CNMG Carbide Threading Inserts

Large Image :  16ER AG55 CNC CNMG Carbide Threading Inserts

Product Details:
Place of Origin: China
Brand Name: CROSS
Model Number: 16ER AG55
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 0.68$-0.9$
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

16ER AG55 CNC CNMG Carbide Threading Inserts

Description
Coating: Pvd/cvd Usage: Thread Turning Tool
Material: Tungsten Carbide Color: Gray/golden/black
Application: Thread Turning Tool Workpiece: Steel/stainless Steel/cast Iron/aluminum/copper
Advantages: Factory Direct Package: 10pcs/plastic Box
Sample: Available
High Light:

16ER AG55 Carbide Threading Inserts

,

cnc cnmg Carbide Threading Inserts

,

16ER AG55 cnc cnmg inserts

16ER AG55 Carbide CNC Cutting Tools Threading Insert Turning Insert



Technical Information:

  • NPT threads for steam, gas and water pipes.
    Turning threads is a common operation on CNC machines. Using indexable tools to prune threads can achieve process security and high productivity.
    Machine feed is the most important factor in turning threads : it must be equal to the pitch, which is the distance between a point on the thread and the corresponding point on the adjacent thread. The fit between the pitch and the feed per revolution is accomplished by controlling the subroutine in the CNC machine.
    Thread turning should first consider 3 aspects to determine the best thread machining method and tool selection :
    Main parameters of the thread :
    External or internal threads
    Thread type
    Pitch
    Right or left hand thread
    Tolerance
    Workpiece material properties, shape and quantity
    Whether the workpiece is safely clamped
    Is there any problem with chip removal
    Workpiece batches
    Machine parameters
    High stability, power and torque requirements, especially for larger diameters

Feature Advantage:

  • NPT standard thread series are available in various specifications and models.
  • Observed under a microscope of 40 times, the perfect edge grinding and passivation accuracy.
  • The workpiece angle error is controlled at ±0.5 degrees.
  • High-quality cemented carbide substrate, high toughness, high wear resistance and versatility.
  • High-precision tooth type for high-quality, high-precision thread machining of steel, stainless steel, and difficult-to-cut materials.
  • Life is completely comparable to the first-line brands in Europe and America.



Type:





Serial



Size



Pitch



MP2215

ISO:

ISO 965-1980

DIN 13

16 Right/Left External 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

16 Right/Left Internal 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left External 3.5-6.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left Internal 3.5-6.0 mm

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left External 8-19 t/inch

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left Internal 8-19 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left External 8-24 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left Internal 8-24 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left External 11-28 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left Internal 11-28 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left External 8-27 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left Internal 8-27 t/inch

tips:

1.As cutting tools prices often fluctuate, the price on the site is not necessarily the current price. Contact us prior to purchase to confirm exact stock and price


2, due to the wide variety of cutting tools, if you need other models, please contact us.

3.Support multiple payment channels, 30 % advance payment

4. The minimum order quantity is 50 pieces and the package can be customized ( minimum order 500 pieces )

C16ER AG55 CNC CNMG Carbide Threading Inserts 016ER AG55 CNC CNMG Carbide Threading Inserts 116ER AG55 CNC CNMG Carbide Threading Inserts 2
